Border Defence Pressure 63T CBT-60 CBT-65 Razor Barbed Wire Production Line
Razor Barbed Wire Production Line Introduction:
Razor barbed wire production line consists of punching machine and coil machine.

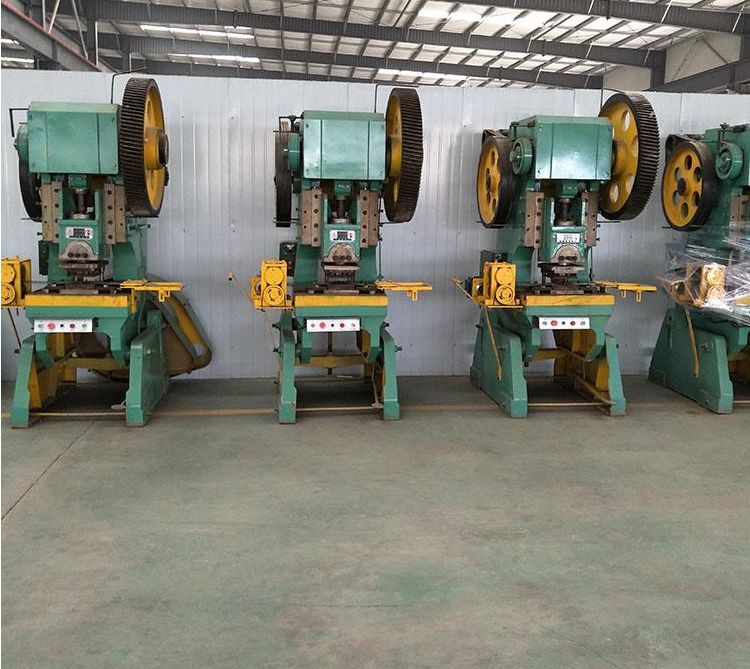

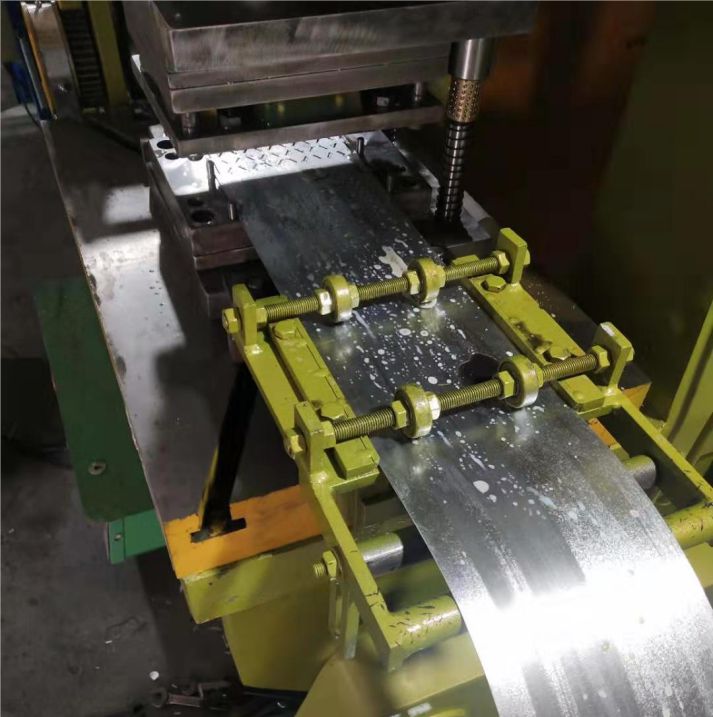

Punching machine cuts steel tapes in different razor shapes with different mould.

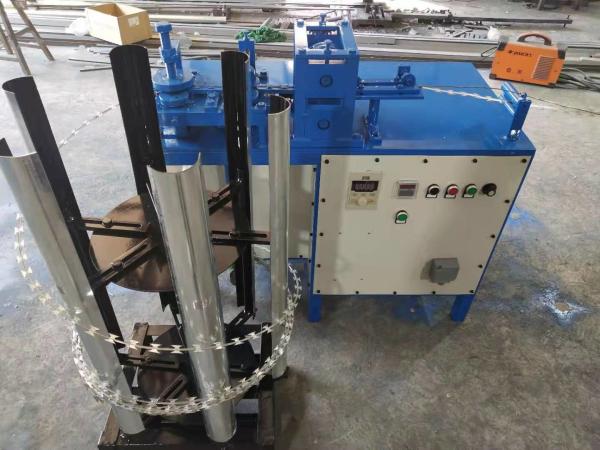

Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
Razor barbed wire is extensively used for security isolation of military facilities, communication stations,power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
We have razor barbed wire production line in stock for selling Punching pressure: 25Ton,40Ton,63Ton. Razor model:BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65 Material of razor:Hot galvanized sheet,stainless steel sheet. Normally with one sets mould for free
Razor Barbed Wire Production Line Features:
1. PLC and Touch screen control, easy to operate.
2. Production speed can be changed by frequency inverter, long life and high productivity.
3. Material feeding with step motor, more accurate.
4. Mold adopts special material, long life and more accurate.
5. Fit for various razor barbed wires production with the different moulds.
Razor Barbed Wire Production Line Technical Parameters:
63Ton Razor barbed wire Machine |
| Punching machine | Strip width | mm | 12-22 |
| Strip thickness | mm | 0.3-06 |
| Stroke per minute | times | 100 |
| weight | ton | 4.2 |
| power | kw | 7.5 |
| voltage | voltage | 380V,415V,440V,220V |
| dimension | mm | 1500*1300*2100 |
| Coiling machine | wire diameter | mm | 2.0-3.0 |
| production | kg/h | 80 |
| voltage | voltage | 380V,220V,415V,440V |
| power | kw | 3 |
| dimension | mm | 1100*750*1200 |
Mould type for you to choose:
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm |
| BTO-22 | 22±1mm | 15±1mm | 48±1mm |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm |
| CBT-60 | 60±1mm | 32±1mm | 96±1mm |
| CBT-65 | 65±1mm | 21±1mm | 100±1mm |
Razor Barbed Wire Production Line Applications:
It is used for the isolation and protection of the Military Defence, grassland boundary, railway and highway, as well as the circle and prohibition protection of garden apartments, organs, prisons, posts and border guards.

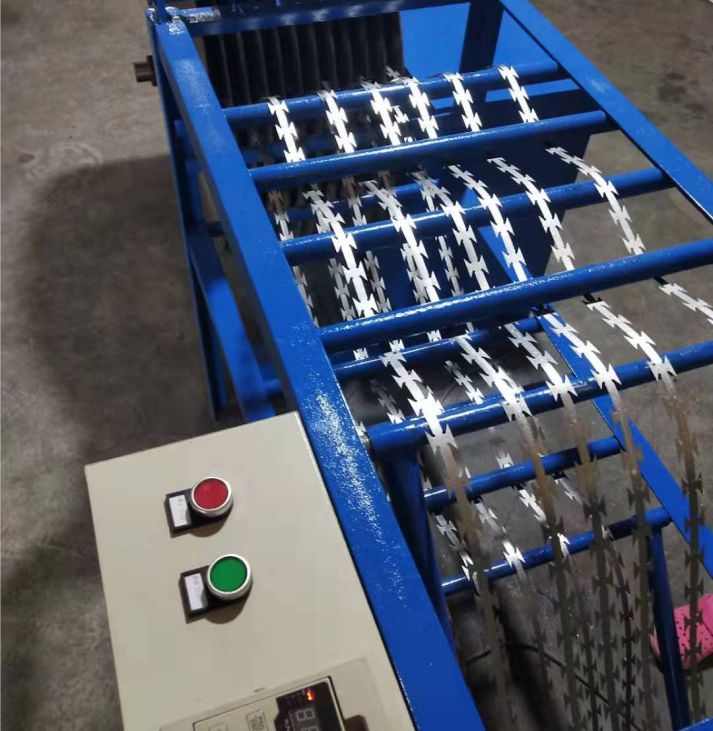

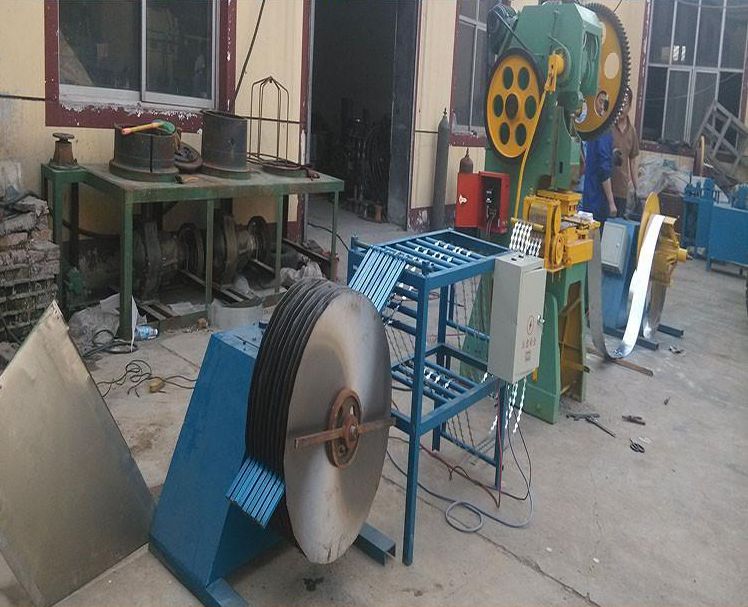

Razor Barbed Wire Production Line Photos:
